SMA 50 Ohm Programmable Attenuators

Check out our new RF calculators & conversion tools...

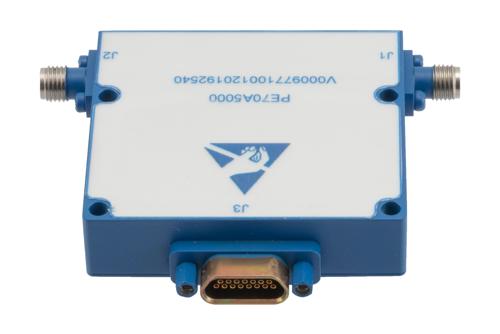

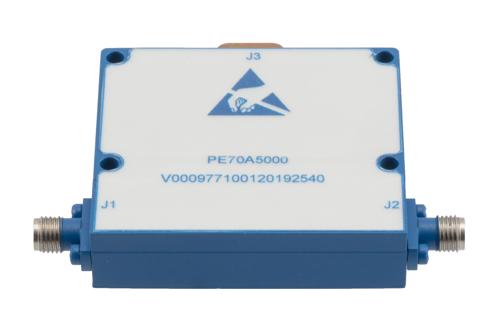

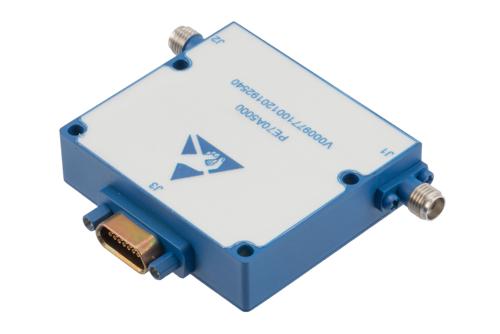

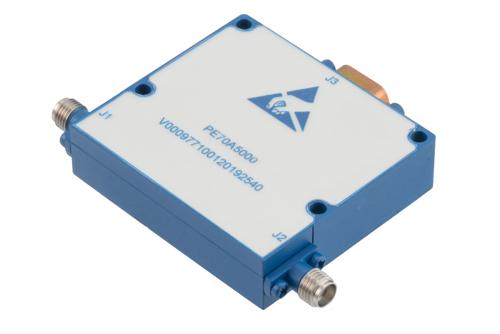

60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz

Product ID: PE70A5000
60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz


Image Views:  60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz high resolution
Zoomalternate image
View 2


Click for:PE70A5000 Datasheet
Click for:PE70A5000 REACH Cert
Available Quantity: 6
Pricing Table
QUANTITYPRICE
1-1$5,777.66
2-4$5,431.00
5-9$5,142.12
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
DesignTTL Controlled
Maximum Frequency6 GHz
Impedance50 Ohm
Connector Series 1SMA
Connector Gender 1Female
Connector Series 2SMA
Connector Gender 2Female
Minimum Attenuation0 dB
Maximum Attenuation60 dB
Switching Time50,000 ns


60 dB With 8 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female, 0.25 dB Steps From 30 MHz To 6 GHz

PE70A5000 is a programmable attenuator from Pasternack. Our SMA attenuator is a programmable step attenuator design. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a SMA female for connector 2. PE70A5000 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 60 dB with 8dB step sizes. Our programmable RF attenuator has frequency range of 30 MHz to 6 GHz and a maximum VSWR of 0. This adjustable SMA attenuator is rated to 0 Watt at the stated attenuation.

Our attenuator PE70A5000 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
