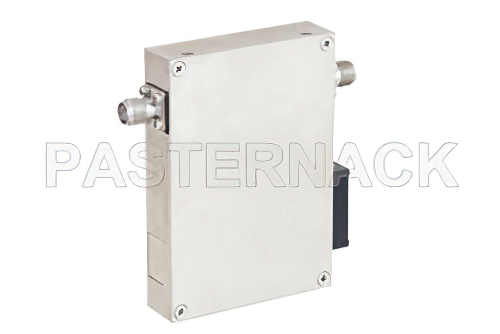

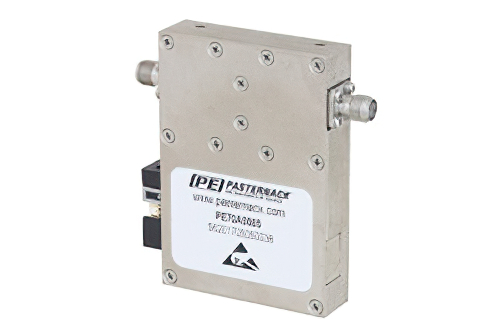

TTL Controlled Programmable Attenuator, 63.5 dB, from 30 MHz to 3 GHz, 0.5 dB Steps, SMA Female

Product ID: PE70A5005


10+Call Us

* All Prices are in US Dollars and do not include duties


Available Quantity: 8
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
DesignTTL Controlled
Maximum Frequency3 GHz
Impedance50 Ohm
VSWR Maximum1.8:1
Connector Series 1SMA
Connector Gender 1Female
Connector Series 2SMA
Connector Gender 2Female
Minimum Attenuation0 dB
Maximum Attenuation63.5 dB
Switching Time1,000 ns


63.5 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 0.5 dB Steps From 30 MHz to 3 GHz

PE70A5005 is a programmable attenuator from Pasternack. Our SMA attenuator is a programmable step attenuator design. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a SMA female for connector 2. PE70A5005 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 63.5 dB with 0dB step sizes. Our programmable RF attenuator has frequency range of 30 MHz to 3 GHz and a maximum VSWR of 1.8. This adjustable SMA attenuator is rated to 0 Watt at the stated attenuation.

Our attenuator PE70A5005 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
