SMA 50 Ohm Programmable Attenuators

Check out our new RF calculators & conversion tools...

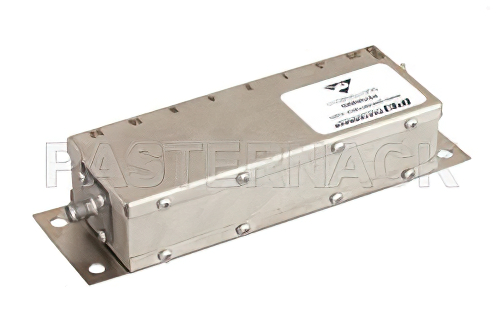

8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

Product ID: PE70A8002
8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female


Image Views:  8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female high resolution
Zoomalternate image
View 2


Click for:PE70A8002 Datasheet
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-1$2,831.85
2-4$2,661.94
5-9$2,520.35
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
DesignRelay Controlled
Maximum Frequency2 GHz
Impedance50 Ohm
Power Maximum0.5 Watt
Connector Series 1SMA
Connector Gender 1Female
Connector Series 2SMA
Connector Gender 2Female
Minimum Attenuation0 dB
Maximum Attenuation63.75 dB
Switching Time6,000,000 ns


8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

PE70A8002 is a programmable attenuator from Pasternack. Our SMA attenuator is a programmable step attenuator design. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack programmable attenuator has a female gender for connector 1 and a SMA female for connector 2. PE70A8002 programmable step attenuator has a minimum attenuation of 0 dB and a maximum attenuation of 63.75 dB with 8dB step sizes. Our programmable RF attenuator has frequency range of DC to 2 GHz and a maximum VSWR of 0. This adjustable SMA attenuator is rated to 0.5 Watt at the stated attenuation.

Our attenuator PE70A8002 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
