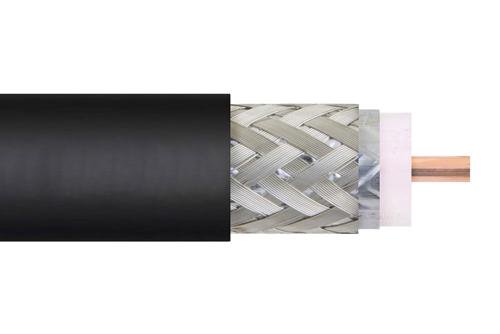

The LMR-600-75-DB part number from Pasternack is a low-loss coax cable that is flexible. Pasternack flexible coax RF cable has an impedance of 75 Ohm and a PTFE dielectric. Our LMR-600-75-DB coax cable is constructed with a 0.59-inch jacket made of polyethylene.
Our coax cable from Pasternack has a maximum frequency of 2.5 GHz. Additional specifications for this LMR-600-75-DB single-shielded RF coaxial cable are on our downloadable PDF datasheet above. This low-loss RF cable has a repeat minimum bend radius of 1 inch.
Our LMR-600-75-DB coax cable can operate at temperatures ranging from -40 to +85 degrees C. The coax cable has a typical insertion loss/attenuation of 0.4, 0.5, 0.9, 1.1, 1.3, 1.6, 2.3, 3.1, 3.7 and 4.2 dB/100ft at frequency of 30 MHz, 50 MHz, 150 MHz, 220 MHz, 300 MHz, 450 MHz, 900 MHz, 1.5 GHz, 2 GHz and 2.5 GHz respectively. The LMR-600-75-DB flexible RF cable has a copper clad aluminum center conductor.
Pasternack LMR-600-75-DB low-loss coax cables are part of our RF, microwave, and millimeter wave components. These flexible cables and our other RF parts are available for same-day shipping worldwide. Custom RF cable assemblies using LMR-600-75-DB or other coax can be built and shipped the same business day as well.
LMR® is a registered trademark of Times Microwave Systems.
