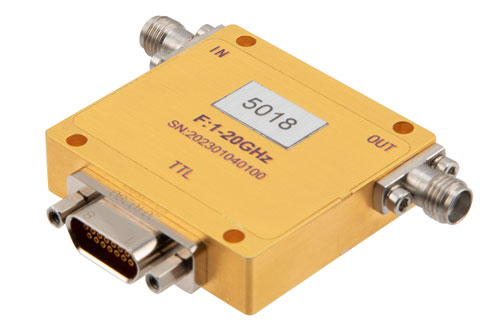

Pasternack's PE70A5018 is a programmable attenuator available in a TTL controlled design. Our radio frequency attenuator comes with field replaceable SMA connectors and has a 50 Ohm impedance. This TTL controlled digital attenuator has 15 dB and 11 dB maximum and typical insertion loss respectively. This 50 Ohm adjustable attenuator is precision manufactured to RF and microwave industry specifications.
Pasternack’s attenuator with field replaceable SMA connectors has a female gender for input and output ports. PE70A5018 programmable step attenuator has a typical attenuation of 127.5 dB with a 0.5 dB step sizes. This bidirectional RF attenuator has an aluminum body with gold plating. Our programmable RF attenuator has a frequency range of 1 GHz to 20 GHz and a maximum VSWR of 2.3:1.
The bench-top active digital attenuator from Pasternack has 8-bit control along with 200 MHz ns typical switching time. Our PE70A5018 TTL controlled programmable attenuator has an operating temperature range from -40 deg C to 85 deg C. This programmable radio frequency attenuator is ideal for test & measurement, military and commercial communications and military electronic systems and research & development applications.
Our attenuator PE70A5018 is shipped from an ISO 9001:2015 certified facility the same day as purchased. This RF programmable attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality TTL controlled programmable digital attenuator that meets your requirements.
