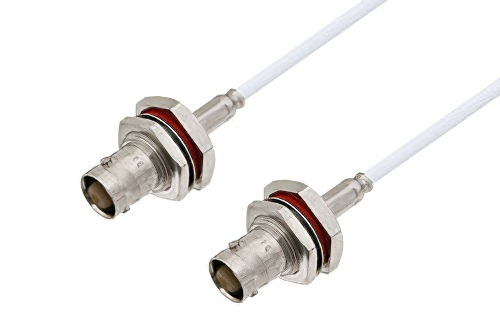

75 Ohm BNC Female Bulkhead to 75 Ohm BNC Female Bulkhead Cable Using 75 Ohm RG187 Coax

Product ID: PE3W07034

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	BNC
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	75 Ohm
Connector Series 2	BNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	75 Ohm
RF Cable Part Number	RG187A/U
RF Cable Type	RG187
RF Cable Impedance	75 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4640	RG187A/U	PE4640	KitBOM Datasheet

75 Ohm BNC Female Bulkhead to 75 Ohm BNC Female Bulkhead Cable Using 75 Ohm RG187 Coax

PE3W07034 is a BNC female bulkhead to BNC female bulkhead cable using RG187 coax. This Pasternack BNC female bulkhead to BNC female bulkhead cable assembly uses a 75 Ohm BNC for connector 1 and a 75 Ohm BNC for connector 2.

Our female BNC bulkhead to female BNC bulkhead cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3W07034 BNC female bulkhead to BNC female bulkhead cable assembly is constructed with RG187 coax.
