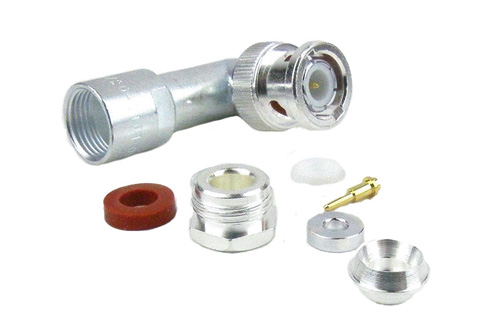

M39012/20-0101 BNC male right angle coaxial connector is a QPL listed part that has an interface type of RG58 and a 50 Ohm impedance. Pasternack's BNC male connector uses clamp/solder as an attachment method. Our male BNC right angle coaxial connector provides a maximum frequency of 4 GHz.
The Pasternack right angle BNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.25:1. Pasternack's BNC coaxial connector has a brass body with silver plating. Our M39012/20-0101 BNC right angle connector uses beryllium copper inner contact and brass outer contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This right angle BNC connector has a gold inner contact plating and a silver outer contact plating. The Pasternack BNC male connector has a dielectric withstanding voltage of 1,500 Vrms.
This Pasternack right angle male BNC connector will ship the same business day as purchased. Our BNC right angle male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
