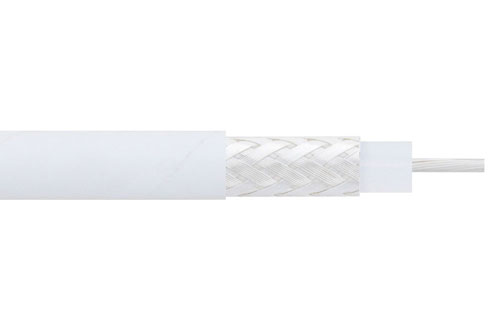

Flexible RG196 Coax Cable Single Shielded with White PTFE Jacket

Name: Flexible RG196 Coax Cable Single Shielded with White PTFE Jacket
Brand: Pasternack
SKU: RG196A/U-BULK

Product ID: RG196A/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$2.57
25-49	$2.44
50-99	$2.31
100-249	$2.21
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 4,786

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG196
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PTFE
Jacket Diameter	0.08 in
Jacket Material	PTFE
No. of Shields	1
Attenuation at 1 Ghz.	49 dB
Power, Max at 1 Ghz.	78 Watts
Frequency, Max	1 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	7
Coax Type	Coax

Description

Flexible RG196 Coax Cable Single Shielded with White PTFE Jacket

RG196A/U-BULK part number from Pasternack is a RG196 coax cable that is flexible. Pasternack RG196 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG196 coax is constructed with a 0.08 jacket made of PTFE. RG196 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 1 GHz. RG196 coax cable has an attenuation at 1 GHz of 49 dB and a maximum power of 78 watts at 1 GHz.

Pasternack RG196 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG196 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG196 or other coax can be built and shipped same day as well.
