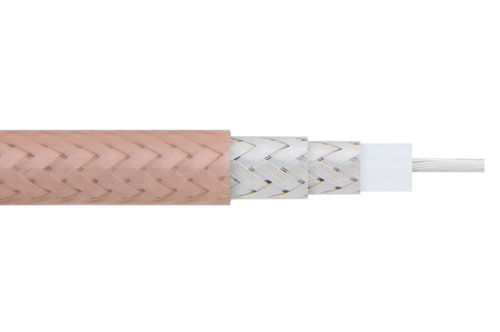

Flexible RG316-DS Coax Cable (by foot) Double Shielded with Tan FEP Jacket

Name: Flexible RG316-DS Coax Cable (by foot) Double Shielded with Tan FEP Jacket
Brand: Pasternack
SKU: RG316-DS-FT
Availability: Discontinued

Product ID: RG316-DS-FT

Product discontinued.

Replaced with RG316-DS-BULK.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG316
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	69.5 %
Jacket Diameter	0.114 in
Jacket Material	FEP
No. of Shields	2
Attenuation at 1 Ghz.	29 dB
Power, Max at 1 Ghz.	120 Watts
RF Shielding	85 dB
Frequency, Max	3 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	7
Minimum Bend Radius, One Time	0.59 in
Minimum Bend Radius, Repeated	1.57 in
Coax Type	Coax

Description

Flexible RG316-DS Coax Cable (by foot) Double Shielded with Tan FEP Jacket

RG316-DS-FT part number from Pasternack is a RG316 coax cable that is flexible. Pasternack RG316-DS flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG316-DS coax is constructed with a 0.114 jacket made of FEP. RG316-DS coax has a shield count of 2, a RF shielding of 85 dB and the maximum frequency for this Pasternack cable is 3 GHz. RG316-DS coax cable has an attenuation at 1 GHz of 29 dB and a maximum power of 120 watts at 1 GHz.

Pasternack RG316 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG316-DS cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG316-DS or other coax can be built and shipped same day as well.
