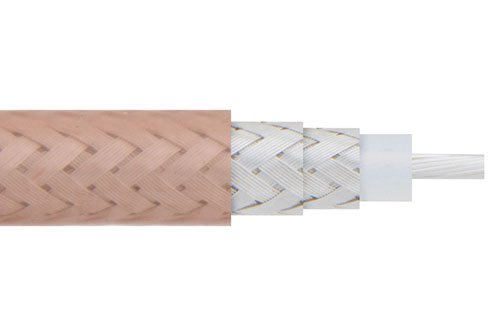

Flexible RG400 Coax Cable Double Shielded with Tan FEP Jacket

Name: Flexible RG400 Coax Cable Double Shielded with Tan FEP Jacket
Brand: Pasternack
SKU: RG400/U-BULK
Availability: InStock

Product ID: RG400/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$17.79
25-49	$16.90
50-99	$16.01
100-249	$15.30
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 963

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG400
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	70 %
Jacket Diameter	0.195 in
Jacket Material	FEP
No. of Shields	2
Attenuation at 1 Ghz.	14.7 dB
Power, Max at 1 Ghz.	600 Watts
Frequency, Max	12.4 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	19
Minimum Bend Radius, Repeated	1 in
Coax Type	Coax

Description

Flexible RG400 Coax Cable Double Shielded with Tan FEP Jacket

RG400/U-BULK part number from Pasternack is a RG400 coax cable that is flexible. Pasternack RG400 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG400 coax is constructed with a 0.195 jacket made of FEP. RG400 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 12.4 GHz. RG400 coax cable has an attenuation at 1 GHz of 14.7 dB and a maximum power of 600 watts at 1 GHz.

Pasternack RG400 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG400 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG400 or other coax can be built and shipped same day as well.
