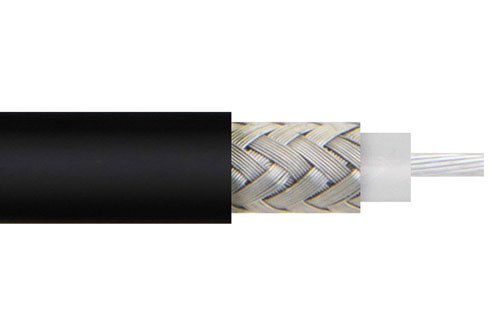

Flexible RG58 Coax Cable Single Shielded with Black PVC (NC) Jacket

Name: Flexible RG58 Coax Cable Single Shielded with Black PVC (NC) Jacket
Brand: Pasternack
SKU: RG58C/U-BULK

Product ID: RG58C/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$2.27
25-49	$2.16
50-99	$2.04
100-249	$1.95
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 25,483

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG58
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE
Velocity of Propagation	65.9 %
Jacket Diameter	0.195 in
Jacket Material	PVC (NC)
No. of Shields	1
Attenuation at 1 Ghz.	20 dB
Power, Max at 1 Ghz.	44 Watts
Frequency, Max	5 GHz
Max Operating Temperature	80 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	19
Minimum Bend Radius, One Time	0.98 in
Minimum Bend Radius, Repeated	1.96 in
Coax Type	Coax

Description

Flexible RG58 Coax Cable Single Shielded with Black PVC (NC) Jacket

RG58C/U-BULK part number from Pasternack is a RG58 coax cable that is flexible. Pasternack RG58 flexible coax cable is 50 Ohm and has a PE dielectric. Our RG58 coax is constructed with a 0.195 jacket made of PVC (NC). RG58 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 5 GHz. RG58 coax cable has an attenuation at 1 GHz of 20 dB and a maximum power of 44 watts at 1 GHz.

Pasternack RG58 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG58 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG58 or other coax can be built and shipped same day as well.
