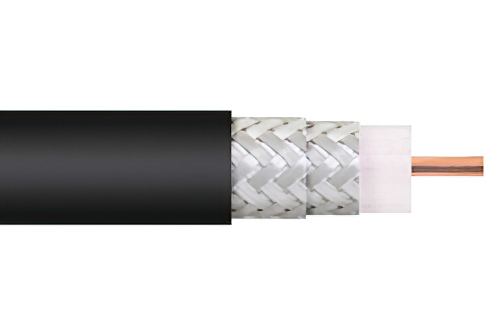

75 Ohm Flexible RG59 Type Coax Cable Double Shielded with Black PVC Jacket
Product ID:
PE-B305
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | RG59 Type |
| Flex Type | Flexible |
| Impedance | 75 Ohm |
| Dielectric Type | PE |
| Jacket Diameter | 0.305 in |
| Jacket Material | PVC |
| No. of Shields | 2 |
| Attenuation at 1 Ghz. | 9.2 dB |
| Power, Max at 1 Ghz. | 52 Watts |
| Frequency, Max | 1 GHz |
| Max Operating Temperature | 80 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Coax Type | Coax |
Description
75 Ohm Flexible RG59 Type Coax Cable Double Shielded with Black PVC Jacket
PE-B305 part number from Pasternack is a RG59 Type coax cable that is flexible. Pasternack PE-B305 flexible coax cable is 75 Ohm and has a PE dielectric. Our PE-B305 coax is constructed with a 0.305 jacket made of PVC. PE-B305 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 1 GHz. PE-B305 coax cable has an attenuation at 1 GHz of 9.2 dB and a maximum power of 52 watts at 1 GHz.
Pasternack RG59 Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-B305 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-B305 or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
