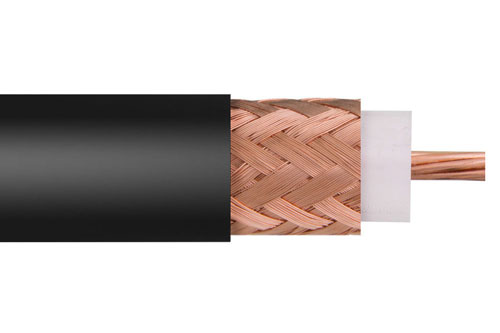

Flexible RG8 Coax Cable Single Shielded with Black PVC (NC) Jacket

Name: Flexible RG8 Coax Cable Single Shielded with Black PVC (NC) Jacket
Brand: Pasternack
SKU: RG8A/U-BULK
Availability: OutOfStock

Product ID: RG8A/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$7.49
25-49	$7.12
50-99	$6.74
100-249	$6.44
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG8
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE
Velocity of Propagation	66 %
Jacket Diameter	0.405 in
Jacket Material	PVC (NC)
No. of Shields	1
Attenuation at 1 Ghz.	8 dB
Power, Max at 1 Ghz.	190 Watts
Frequency, Max	1 GHz
Max Operating Temperature	80 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	7
Coax Type	Coax

Description

Flexible RG8 Coax Cable Single Shielded with Black PVC (NC) Jacket

RG8A/U-BULK part number from Pasternack is a RG8 coax cable that is flexible. Pasternack RG8 flexible coax cable is 50 Ohm and has a PE dielectric. Our RG8 coax is constructed with a 0.405 jacket made of PVC (NC). RG8 coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 1 GHz. RG8 coax cable has an attenuation at 1 GHz of 8 dB and a maximum power of 190 watts at 1 GHz.

Pasternack RG8 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG8 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG8 or other coax can be built and shipped same day as well.
