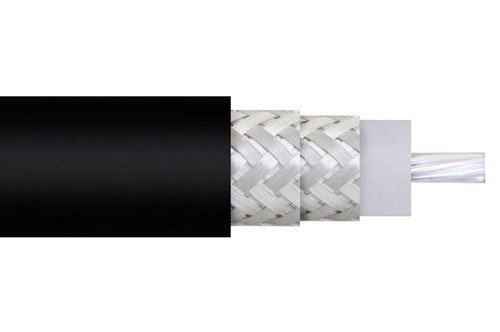

Flexible RG214 Coax Cable Double Shielded with Black PVC Jacket

Name: Flexible RG214 Coax Cable Double Shielded with Black PVC Jacket
Brand: Pasternack
SKU: RG214/U-BULK

Product ID: RG214/U-BULK

Pricing

Quantity (Feet)	Price
1-24	$18.59
25-49	$17.66
50-99	$16.73
100-249	$15.99
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 7,500

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	RG214
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE
Velocity of Propagation	66 %
Jacket Diameter	0.425 in
Jacket Material	PVC
No. of Shields	2
Attenuation at 1 Ghz.	7.32 dB
Power, Max at 1 Ghz.	170 Watts
Frequency, Max	11 GHz
Max Operating Temperature	80 deg C
Center Conductor Type	Stranded
Inner Conductor, Number of Strands	7
Minimum Bend Radius, Repeated	1.6 in
Coax Type	Coax

Description

Flexible RG214 Coax Cable Double Shielded with Black PVC Jacket

RG214/U-BULK part number from Pasternack is a RG214 coax cable that is flexible. Pasternack RG214 flexible coax cable is 50 Ohm and has a PE dielectric. Our RG214 coax is constructed with a 0.425 jacket made of PVC. RG214 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 11 GHz. RG214 coax cable has an attenuation at 1 GHz of 7.32 dB and a maximum power of 170 watts at 1 GHz.

Pasternack RG214 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG214 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG214 or other coax can be built and shipped same day as well.
