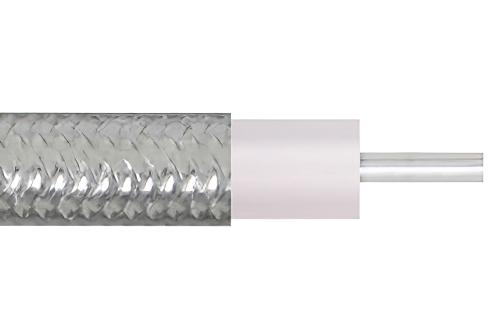

Formable 141 Semi-rigid Coax Cable with Tinned Copper Braid Outer Conductor
Product ID:
PE-SR402FL
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | 141 Semi-rigid |
| Flex Type | Formable |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE |
| Velocity of Propagation | 69.5 % |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 12 dB |
| Power, Max at 1 Ghz. | 400 Watts |
| RF Shielding | 110 dB |
| Frequency, Max | 20 GHz |
| Max Operating Temperature | 125 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, Repeated | 0.625 in |
| Coax Type | Coax |
Description
Formable 141 Semi-rigid Coax Cable with Tinned Copper Braid Outer Conductor
PE-SR402FL part number from Pasternack is a 141 Semi-rigid coax cable that is formable. Pasternack PE-SR402FL formable coax cable is 50 Ohm and has a PTFE dielectric.PE-SR402FL coax has a shield count of 1, a RF shielding of 110 dB and the maximum frequency for this Pasternack cable is 20 GHz. PE-SR402FL coax cable has an attenuation at 1 GHz of 12 dB and a maximum power of 400 watts at 1 GHz.
Pasternack 141 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR402FL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR402FL or other coax can be built and shipped same day as well.
