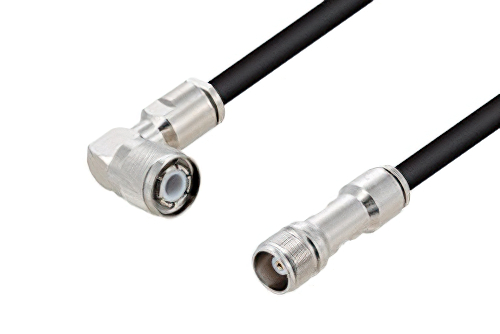

HN Male Right Angle to HN Female Cable Using RG213 Coax
Product ID:
PE3W05081
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional
Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* This item may be subject to an additional
Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | HN |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Right Angle |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | HN |
| Connector Gender 2 | Female |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Part Number | RG213/U |
| RF Cable Type | RG213 |
| RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
 |  |  |  |
|---|
| PE4230 | RG213/U | PE4229 | KitBOM Datasheet |
|---|
HN Male Right Angle to HN Female Cable Using RG213 Coax
PE3W05081 is a HN male right angle to HN female cable using RG213 coax. This Pasternack HN male right angle to HN female cable assembly uses a 50 Ohm HN for connector 1 and a 50 Ohm HN for connector 2. HN right angle to HN coaxial cable assembly uses 90 degree right angle coax cable connector.
Our male HN right angle to female HN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W05081 HN male right angle to HN female cable assembly is constructed with RG213 coax.
