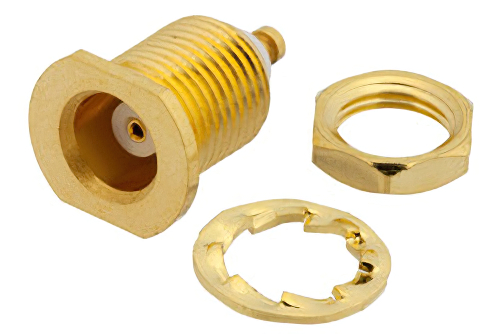

MCX Jack Bulkhead Mount Connector Solder Attachment Turret Terminal, .177 inch D Hole

Product ID: PE4561

Pricing

QuantityPrice
1-24$21.30
25-49$20.24
50-99$19.17
100-249$18.32
250+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 444
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency6 GHz
Interface Type 1Turret

Description

MCX Jack Bulkhead Mount Connector Solder Attachment Turret Terminal, .177 inch D Hole

PE4561 MCX jack bulkhead terminal connector has an interface type of turret and a 50 Ohm impedance. Pasternack MCX jack bulkhead connector uses shield/contact solder as an attachment method. Our jack MCX terminal connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack MCX jack bulkhead terminal connector has a PTFE dielectric type and a VSWR of 1.5. The Pasternack MCX terminal connector has a brass body with gold plating. Our PE4561 MCX connector uses beryllium copper contact. This MCX jack bulkhead terminal RF connector is RoHS and REACH compliant.

This Pasternack jack MCX bulkhead connector will ship the same day as purchased. Our bulkhead MCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MCX connector cable assemblies that will ship the same day as well.
