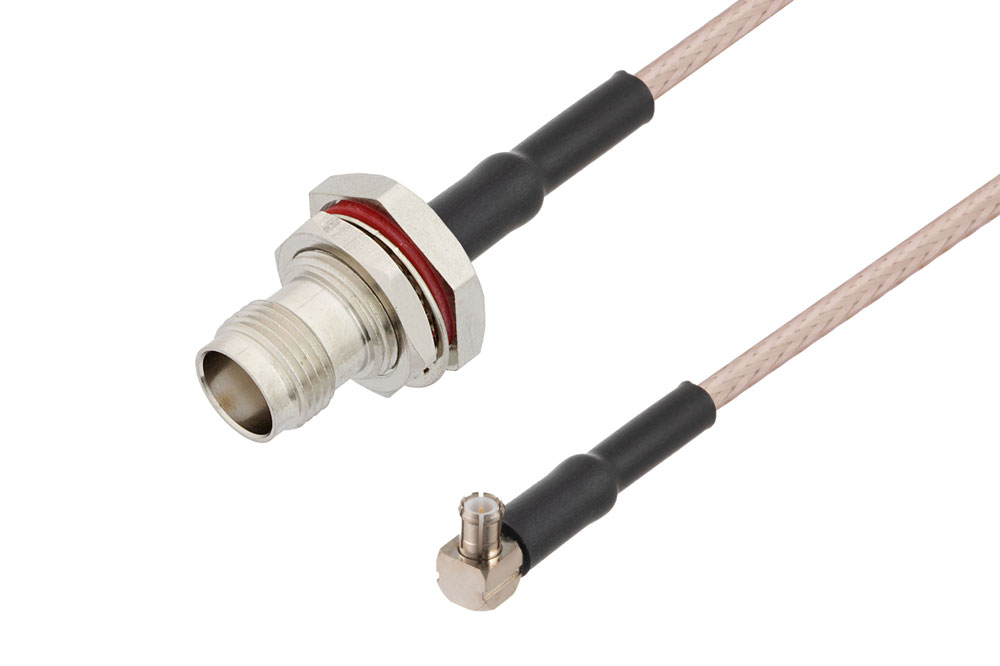

MCX Plug Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax with HeatShrink, LF Solder

Name: MCX Plug Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax with HeatShrink, LF Solder
Brand: Pasternack
SKU: PE35879LF/HS
Availability: OutOfStock

Product ID: PE35879LF/HS

Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MCX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	TNC
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4879	RG316-DS	PE45177	KitBOM Datasheet

MCX Plug Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax with HeatShrink, LF Solder

PE35879LF/HS is a MCX plug right angle to TNC female bulkhead cable using RG316-DS coax. This Pasternack MCX plug right angle to TNC female bulkhead cable assembly uses a 50 Ohm MCX for connector 1 and a 50 Ohm TNC for connector 2. MCX right angle to TNC coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MCX right angle to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35879LF/HS MCX plug right angle to TNC female bulkhead cable assembly is constructed with RG316-DS coax.
