Medium Power WR-28 Waveguide Terminations

Check out our new RF calculators & conversion tools...

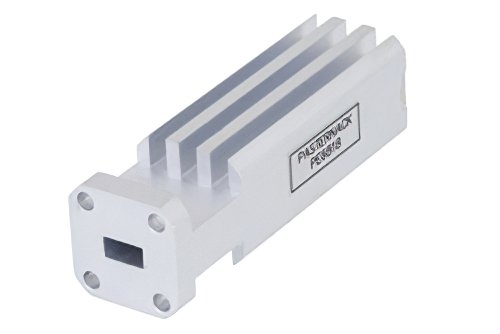

40 Watts Medium Power WR-28 Waveguide Load 26.5 GHz to 40 GHz

Product ID: PE6818
40 Watts Medium Power WR-28 Waveguide Load 26.5 GHz to 40 GHz


Image Views:  40 Watts Medium Power WR-28 Waveguide Load 26.5 GHz to 40 GHz high resolution
Zoomalternate image
View 2


Click for:PE6818 Datasheet
Available Quantity: 35
Pricing Table
QUANTITYPRICE
1-4$922.54
5-9$885.64
10-24$857.96
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power40 Watt
Waveguide SizeWR-28
Minimum Frequency26.5 GHz
Maximum Frequency40 GHz
Impedance50 Ohm


40 Watts Medium Power WR-28 Waveguide Load 26.5 GHz to 40 GHz

PE6818 40 Watts medium power waveguide load (also known as waveguide termination) has a WR-28 input. This Pasternack WR-28 waveguide load / termination is rated for a minimum frequency of 26.5 GHz and a maximum frequency of 40 GHz. Our WR-28 waveguide terminator has a maximum input power of 40 Watts.

WR-28 waveguide load / termination PE6818 has an average maximum VSWR of 1.07:1. This Pasternack WR-28 medium power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-28 load ships same day as purchased worldwide as with our other RF parts.
