Mini SMB Plug 75 Ohm to BNC Male 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

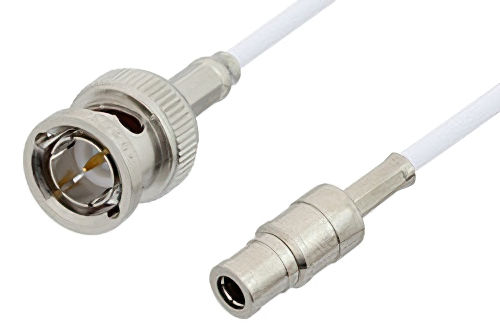

75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax

Product ID: PE34705
75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax

Image Views:  75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax high resolution
Zoom


Click for:PE34705 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1Mini SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberRG187A/U
RF Cable TypeRG187
RF Cable Impedance75


75 Ohm Mini SMB Plug to 75 Ohm BNC Male Cable Using 75 Ohm RG187 Coax

PE34705 is a Mini SMB plug to BNC male cable using RG187 coax. This Pasternack Mini SMB plug to BNC male cable assembly uses a 75 Ohm Mini SMB for connector 1 and a 75 Ohm BNC for connector 2.

Our plug Mini SMB to male BNC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE34705 Mini SMB plug to BNC male cable assembly is constructed with RG187 coax.
