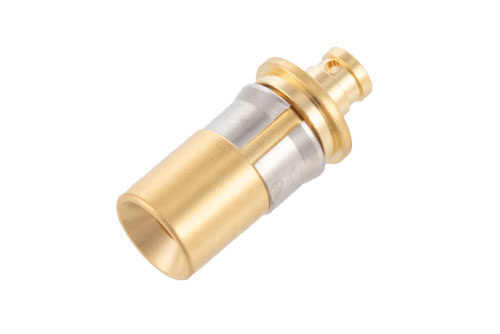

The PE45539 VITA 67 RF connector does not require any special adapter and is designed for side-by-side implementation with VITA 46 hardware. Pasternack Mini SMP male connector uses shield/contact solder as an attachment method. Our male Mini SMP coaxial connector provides a minimum frequency of DC and a maximum frequency of 40 GHz. This radio frequency VITA 67 connector is suitable for robust and rugged high speed cabled solution, vita 67 backplane, high density applications.
The Pasternack Mini SMP male coaxial connector has a VSWR of 1.45:1. Our VITA 67 radio frequency connector are designed with 4-position for 3U format within the OpenVPX architecture and consists of a minimum insulation resistance of 5000 MOhms utilizing existing, and proven SMPM interfaces and provides coaxial interconnections on VPX platforms.The Pasternack Mini SMP coaxial connector has a brass body with gold plating. Our PE45539 Mini SMP connector uses beryllium copper contact material. This Mini SMP male coaxial RF connector is RoHS and REACH compliant.
Pasternack VITA 67 RF connector block has a maximum inner conductor and outer conductor resistance of 6 mOhms and 5 mOhms respectively. The radio frequency connector is made from brass along with a contact life of 500 cycles. Our high quality PE45539 features a ASTM B488 body plating specification. We also build Mini SMP custom connector cable assemblies that will ship the same day as well.
This Pasternack 4-position VITA 67 male Mini SMP connector will ship the same day as purchased. Our Mini SMP male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you to the perfect RF connector as per your requirement.
