Snap-On MMBX Plug to SSMB Jack Bulkhead Cable Using RG316 Coax

Product ID: PE3W07532

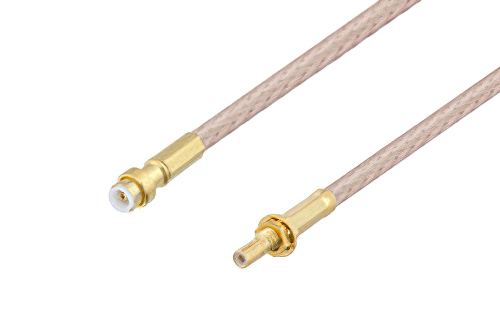

Snap-On MMBX Plug to SSMB Jack Bulkhead Cable Using RG316 Coax

Image Views:  Snap-On MMBX Plug to SSMB Jack Bulkhead Cable Using RG316 Coax high resolution
Zoom


Click for:PE3W07532 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE45251RG316/UPE4336KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SSMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm


Snap-On MMBX Plug to SSMB Jack Bulkhead Cable Using RG316 Coax

PE3W07532 is a MMBX plug to SSMB jack bulkhead cable using RG316 coax. This Pasternack MMBX plug to SSMB jack bulkhead cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm SSMB for connector 2.

Our plug MMBX to jack SSMB bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W07532 MMBX plug to SSMB jack bulkhead cable assembly is constructed with RG316 coax.
