High Power SPDT Electromechanical Relay Switches (>75 Watts)

Check out our new RF calculators & conversion tools...

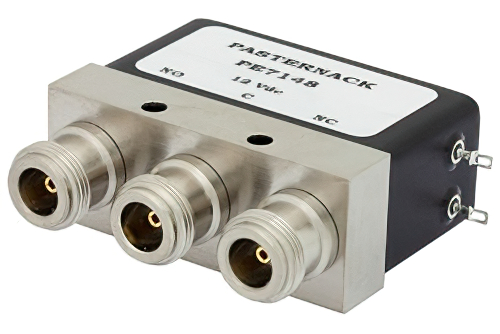

SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 12V, N

Product ID: PE7148
SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 12V, N

Image Views:  SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 12V, N high resolution
Zoom


Click for:PE7148 Datasheet
Click for:PE7148 RoHS Cert
Click for:PE7148 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE71S6398
Remaining Quantity Available: 5
Pricing Table
QUANTITYPRICE
1-24$596.79
25-49$555.01
50-99$513.24
100-249$477.43
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesN
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency4 GHz
Impedance50 Ohm
Maximum Input Power275 Watts
Maximum VSWR1.3:1
Maximum Insertion Loss0.2 dB
Minimum Isolation80 dB


N Electro Mechanical SPDT Switch From DC To 4 GHz Rated To 275 Watts And 10 Volts To 14 Volts With F Features

PE7148 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses N connectors at 50 Ohm. This N RF relay SPDT switch has a maximum frequency of 4 GHz and maximum power of 275 Watts. The Pasternack radio frequency SPDT N electro-mechanical relay switch is rated at a control voltage of 10 Volts, indicator voltage 14 and switching speed of 20ms.

N SPDT electro mechanical RF relay switch features Failsafe with an isolation minimum of 80 dB. SPDT electromechanical relay radio frequency switch PE7148 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT N coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
