Reverse Polarity Type N to Type N Standard Polarity Adapters

Check out our new RF calculators & conversion tools...

N Female to RP-N Male Adapter

Product ID: PE9770

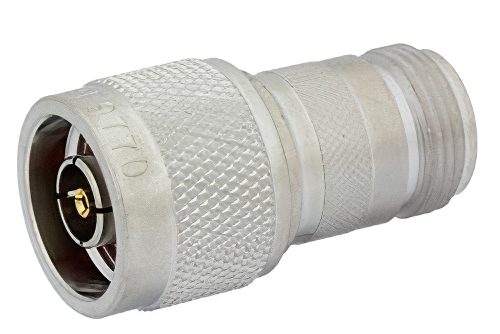

N Female to RP-N Male Adapter

Image Views:  N Female to RP-N Male Adapter high resolution
Zoom


Click for:PE9770 Datasheet
Click for:PE9770 RoHS Cert
Available Quantity: 55
Pricing Table
QUANTITYPRICE
1-24$40.73
25-49$38.69
50-99$36.66
100-249$35.03
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Reverse Polarity
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max11 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


N Female to RP-N Male Adapter

Type N adapter PE9770 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to type N adapter is a in-series coaxial adapter design. This 50 Ohm type N adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 11 GHz.

Type N female to reverse polarity type N male adapter is one of the many RF components that ship same day as they are ordered. PE9770 female N type to male N type adapter has a straight body. This Pasternack straight N type coax adapter is a in-line RF adapter.

Our female type N to male type N adapter PE9770 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to type N radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
