Reverse Polarity Type N to Type N Standard Polarity Adapters

Check out our new RF calculators & conversion tools...

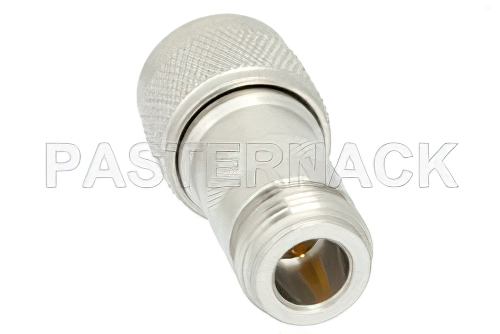

N Male to RP-N Female Adapter

Product ID: PE9771
N Male to RP-N Female Adapter


Image Views:  N Male to RP-N Female Adapter high resolution
Zoomalternate image
View 2


Click for:PE9771 Datasheet
Click for:PE9771 RoHS Cert
Available Quantity: 534
Pricing Table
QUANTITYPRICE
1-24$41.36
25-49$39.29
50-99$37.22
100-249$35.57
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Reverse Polarity
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max11 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


N Male to RP-N Female Adapter

Type N adapter PE9771 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to type N adapter is a in-series coaxial adapter design. This 50 Ohm N type adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 11 GHz.

Type N male to reverse polarity type N female adapter is one of the many RF components that ship same day as they are ordered. PE9771 male type N to female type N adapter has a straight body. This Pasternack straight type N coax adapter is a in-line RF adapter.

Our male N type to female N type adapter PE9771 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to type N radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
