Type N Male to Type N Male Cable Assemblies

Check out our new RF calculators & conversion tools...

N Male to N Male Cable Using RG217 Coax

Product ID: PE3997

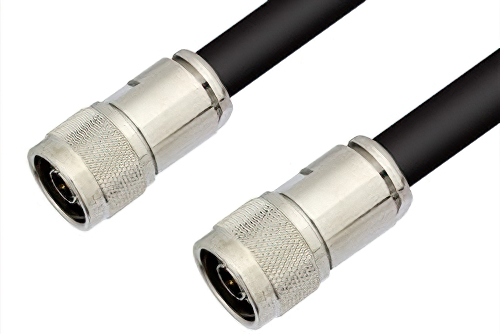

N Male to N Male Cable Using RG217 Coax

Image Views:  N Male to N Male Cable Using RG217 Coax high resolution
Zoom


Click for:PE3997 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.84 in.96 in.108 in.120 in.144 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE4221RG217/UPE4221KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG217/U
RF Cable TypeRG217
RF Cable Impedance50 Ohm


N Male to N Male Cable Using RG217 Coax

PE3997 is a N male to N male cable using RG217 coax. This Pasternack N male to N male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm N for connector 2.

Our male N to male N cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3997 N male to N male cable assembly is constructed with RG217 coax.
