Type N Male 75 Ohm to Type N Male 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

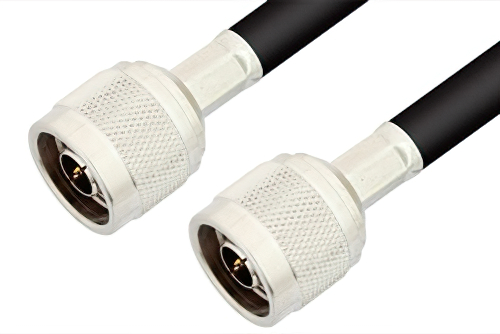

75 Ohm N Male to 75 Ohm N Male Cable Using 75 Ohm RG6 Coax

Product ID: PE3612
75 Ohm N Male to 75 Ohm N Male Cable Using 75 Ohm RG6 Coax

Image Views:  75 Ohm N Male to 75 Ohm N Male Cable Using 75 Ohm RG6 Coax high resolution
Zoom


Click for:PE3612 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberRG6A/U
RF Cable TypeRG6
RF Cable Impedance75


75 Ohm N Male to 75 Ohm N Male Cable Using 75 Ohm RG6 Coax

PE3612 is a type N male to type N male cable using RG6 coax. This Pasternack type N male to type N male cable assembly uses a 75 Ohm type N for connector 1 and a 75 Ohm N type for connector 2.

Our male type N to male type N cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3612 N type male to N type male cable assembly is constructed with RG6 coax and the maximum VSWR is 1.4:1.
