Pasternack Introduces All New Line of X Band Amplifiers

X Band High Gain Power Amplifiers with High Linearity Performance from Pasternack

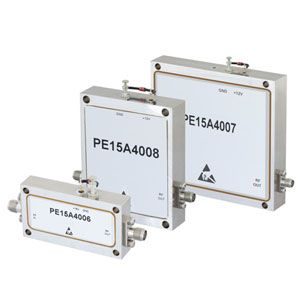

Pasternack X Band High Gain Power Amplifiers

Irvine, CA - Pasternack Enterprises, Inc., an industry leading manufacturer and supplier of RF, microwave and millimeter wave products, introduces a new family of coaxial X band high gain power amplifiers. These RF amplifiers are typically used as driver amplifiers or high power output amplifiers in a wide variety of commercial, industrial and military applications including telecom infrastructure, test instrumentation, fixed microwave backhaul, radar systems, communication systems, satellite communications and commercial avionics.

Pasternack’s new X band power amplifiers are packaged inside hermetically-sealed metal enclosures and exhibit outstanding performance in high gain, gain flatness, high linearity and wide dynamic range. This excellent performance is achieved by using a hybrid microwave integrated circuit design and advanced GaAs pHEMT technology. The connectorized SMA amplifier modules are unconditionally stable and include built-in voltage regulation, bias sequencing, and reverse bias protection for added reliability. The power amplifier over-voltage protection is installed externally for easy repair. These high reliability RF amplifiers are fully matched internally for 50 Ohm input and output, which eliminates the customers need for any additional sensitive external RF tuning components.

The new X band high gain power amplifiers from Pasternack are perfectly suited for high linearity applications with frequencies ranging from 8 to 12 GHz. These X-band amplifiers offer 30 to 41 dB small signal gain over a temperature range of -30°C and +70°C. The excellent gain flatness of these high gain amplifiers ranges from 0.50 dB to 1.0 dB and the IP3 output performs up to 44 dBm. Pasternack’s new RF amplifiers are offered in 1 Watt and 4 Watt designs depending on the configuration.

“The rapid growth of our active components offering signifies a new company strategy to further expand our reach in the RF industry”, says Michael Rachlin, Active RF/microwave Products Manager at Pasternack. “Our new X-band power amplifiers represent the first installment toward the execution of this strategic direction.”

The new coaxial X band high gain power amplifiers from Pasternack are in-stock and available now. You can view the entire line of these new products by visiting http://www.pasternack.com/pages/Featured_Products/x-band-high-gain-power-amplifiers.htm directly.  Pasternack can be contacted at +1-949-261-1920.

Pasternack RF Amplifier Part #

Parameter (Typical)

Units

PE15A4006

PE15A4007

PE15A4008

Amplifier Frequency Range

GHz

8.5 - 11

8.5 - 11

8.0 - 12

Small Signal Gain

dB

30

30

41

Gain Flatness

dB

±0.5

±0.75

±1.0

P1dB Output Power

dBm

30

36

30

Output IP3 (Linearity)

dBm

38

45



Noise Figure

dB

3

5

3.5

Input VSWR

1.7:1

1.8:1

2:1

Output VSWR

1.7:1

1.8:1

2:1

DC Supply Voltage

V

15

12

12

Current Supply

A

0.9

4.5

1.2

Operating Temperature Range

°C

-30 to +60

-30 to +60

-30 to +70
















###

About Pasternack

A leader in RF products since 1972, Pasternack is an ISO 9001:2008 certified manufacturer and supplier that offers the industry’s largest selection of passive and active RF, microwave and millimeter wave products available for same-day shipping.

Press Contact:

Shaun Gameroz
Pasternack Enterprises, Inc.
17802 Fitch
Irvine, CA 92614
(949) 261-1920
