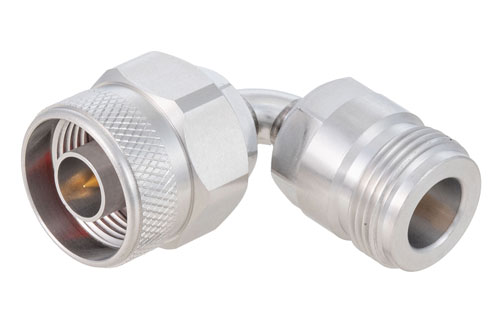

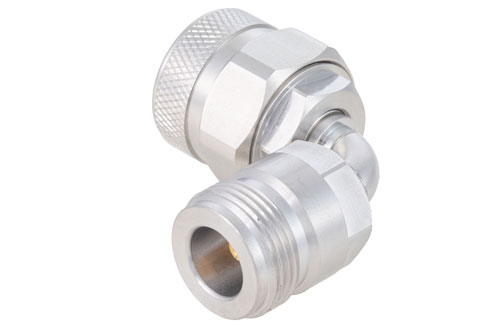

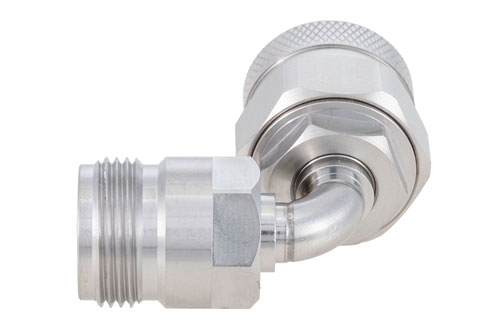

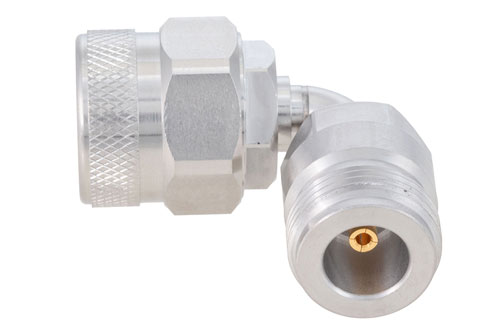

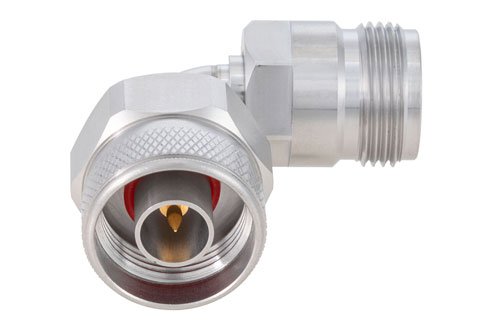

The type N radius right angle adapter PE91786 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.2:1. This RF adapter has a plug to jack gender configuration, which provides easier connections in tighter spaces. Our type N to type N adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 18 GHz. This in-series RF adapter has a dielectric withstanding voltage of 2,500 Vrms.
This type N plug to type N jack adapter is one of the many RF components that ship the same business day as they are ordered. The PE91786 plug type N to jack type N adapter has a radius right angle body. This Pasternack radius right angle type N coax adapter is a 90 degree swept elbow adapter. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. This RF adapter has a 1.45-inch length, 0.75-inch width, and 0.11 lbs weight.
The PE91786 adapter from Pasternack is made from a passivated stainless steel connector body and has a beryllium copper center contact. Our type N plug to type N jack radius right angle radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this in-series adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of radius right angle type N to type N radio frequency adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 18 GHz RF adapter that meets your requirements.
