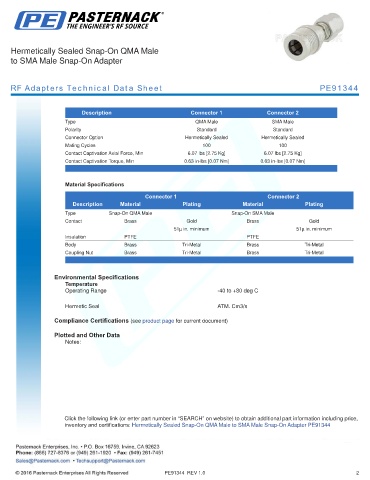

Hermetically Sealed Snap-On QMA Male
to SMA Male Snap-On Adapter

RF Adapters Technical Data Sheet PE91344

.
Description Connector 1 Connector 2
Type QMA Male SMA Male
Polarity Standard Standard
Connector Option Hermetically Sealed Hermetically Sealed
Mating Cycles 100 100
Contact Captivation Axial Force, Min 6.07 lbs [2.75 Kg] 6.07 lbs [2.75 Kg]
Contact Captivation Torque, Min 0.63 in-lbs [0.07 Nm] 0.63 in-lbs [0.07 Nm]
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type Snap-On QMA Male Snap-On SMA Male
Contact Brass Gold Brass Gold
51µ in. minimum 51µ in. minimum
Insulation PTFE PTFE
Body Brass Tri-Metal Brass Tri-Metal
Coupling Nut Brass Tri-Metal Brass Tri-Metal
. .

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C
.
Hermetic Seal ATM. Cm3/s

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Hermetically Sealed Snap-On QMA Male to SMA Male Snap-On Adapter PE91344

PE91344 REV 1.0 2
