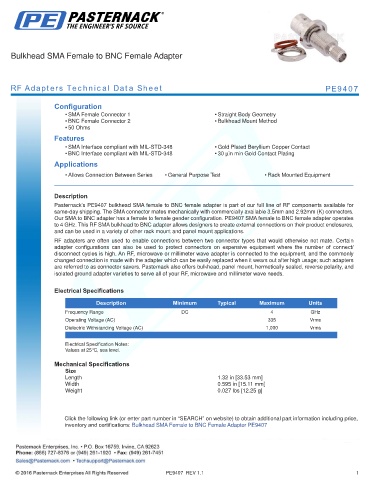

Bulkhead SMA Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9407

Configuration
• SMA Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• SMA Interface compliant with MIL-STD-348 • Gold Plated Beryllium Copper Contact
• BNC Interface compliant with MIL-STD-348 • 30 µin min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9407 bulkhead SMA female to BNC female adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to BNC adapter has a female to female gender configuration. PE9407 SMA female to BNC female adapter operates
to 4 GHz. This RF SMA bulkhead to BNC adapter allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.32 in [33.53 mm]
Width 0.595 in [15.11 mm]
Weight 0.027 lbs [12.25 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead SMA Female to BNC Female Adapter PE9407
