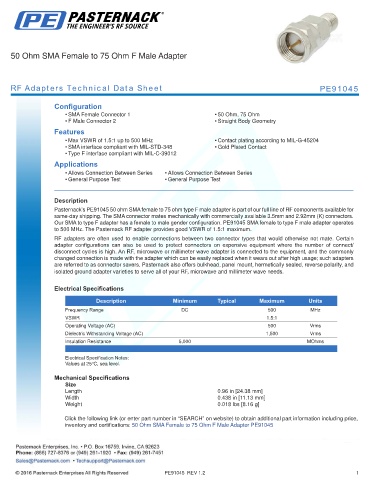

50 Ohm SMA Female to 75 Ohm F Male Adapter

RF Adapters Technical Data Sheet PE91045

Configuration
• SMA Female Connector 1 • 50 Ohm, 75 Ohm
• F Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.5:1 up to 500 MHz • Contact plating according to MIL-G-45204
• SMA interface compliant with MIL-STD-348 • Gold Plated Contact
• Type F interface compliant with MIL-C-39012
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE91045 50 ohm SMA female to 75 ohm type F male adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to type F adapter has a female to male gender configuration. PE91045 SMA female to type F male adapter operates
to 500 MHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.96 in [24.38 mm]
Width 0.438 in [11.13 mm]
Weight 0.018 lbs [8.16 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm SMA Female to 75 Ohm F Male Adapter PE91045

PE91045 REV 1.2 1
