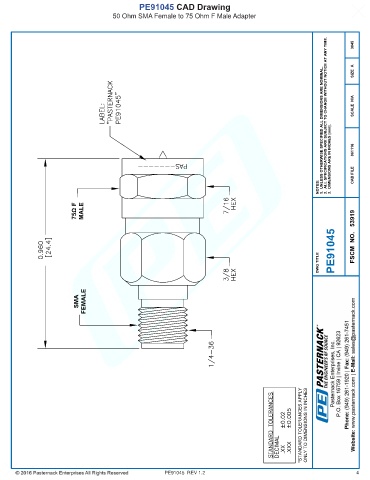

PE91045 CAD Drawing
50 Ohm SMA Female to 75 Ohm F Male Adapter

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3045

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 061116

NOTES: CAD FILE

75Ω F MALE

PE91045 FSCM NO. 53919

DWG TITLE

SMA FEMALE

*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE91045 REV 1.2 4
