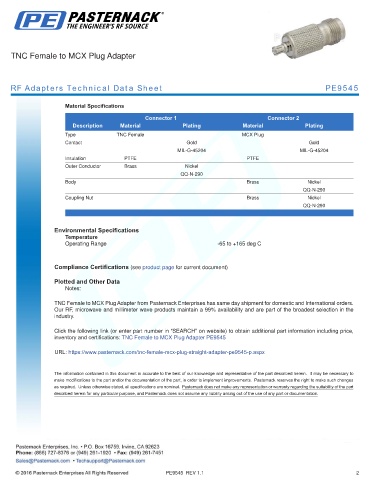

TNC Female to MCX Plug Adapter

RF Adapters Technical Data Sheet PE9545

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female MCX Plug
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female to MCX Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to MCX Plug Adapter PE9545

URL: https://www.pasternack.com/tnc-female-mcx-plug-straight-adapter-pe9545-p.aspx

PE9545 REV 1.1 2
