TNC Female to MCX Jack Adapter

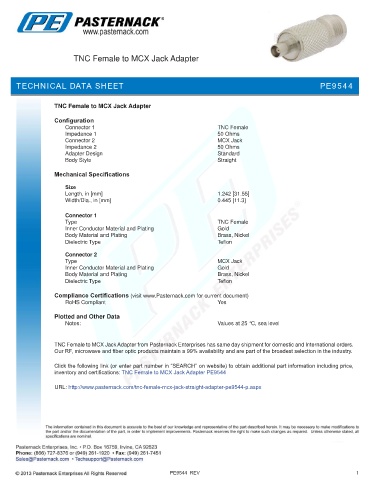

TECHNICAL DATA SHEET PE9544

TNC Female to MCX Jack Adapter

Configuration
Connector 1 TNC Female
Impedance 1 50 Ohms
Connector 2 MCX Jack
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.242 [31.55]
Width/Dia., in [mm] 0.445 [11.3]
.
Connector 1
Type TNC Female
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type MCX Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

TNC Female to MCX Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to MCX Jack Adapter PE9544

URL: http://www.pasternack.com/tnc-female-mcx-jack-straight-adapter-pe9544-p.aspx

PE9544 REV 1
