TNC Female to MCX Jack Bulkhead
Adapter 1.163 inch Overall Length

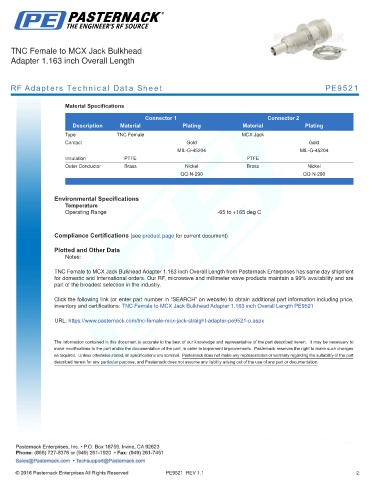

RF Adapters Technical Data Sheet PE9521

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type TNC Female MCX Jack
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

TNC Female to MCX Jack Bulkhead Adapter 1.163 inch Overall Length from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Female to MCX Jack Bulkhead Adapter 1.163 inch Overall Length PE9521

URL: https://www.pasternack.com/tnc-female-mcx-jack-straight-adapter-pe9521-p.aspx

PE9521 REV 1.1 2
