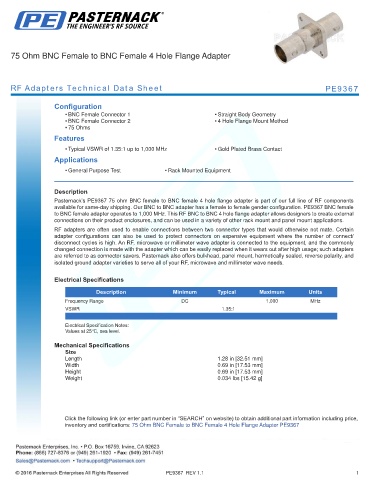

75 Ohm BNC Female to BNC Female 4 Hole Flange Adapter

RF Adapters Technical Data Sheet PE9367

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • 4 Hole Flange Mount Method
• 75 Ohms
Features
• Typical VSWR of 1.35:1 up to 1,000 MHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9367 75 ohm BNC female to BNC female 4 hole flange adapter is part of our full line of RF components
available for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9367 BNC female
to BNC female adapter operates to 1,000 MHz. This RF BNC to BNC 4 hole flange adapter allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.35:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.69 in [17.53 mm]
Height 0.69 in [17.53 mm]
Weight 0.034 lbs [15.42 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female to BNC Female 4 Hole Flange Adapter PE9367

PE9367 REV 1.1 1
