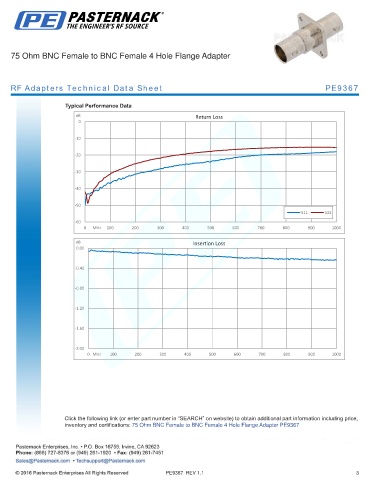

75 Ohm BNC Female to BNC Female 4 Hole Flange Adapter
RF Adapters Technical Data Sheet PE9367
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
S11 S22
-60
0 MHz 100 200 300 400 500 600 700 800 900 1000
dB Insertion Loss
0.00
-0.40
-0.80
-1.20
-1.60
-2.00
0 MHz 100 200 300 400 500 600 700 800 900 1000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female to BNC Female 4 Hole Flange Adapter PE9367
PE9367 REV 1.1 3
