Bulkhead Isolated Ground 75 Ohm BNC
Female to BNC Female Adapter

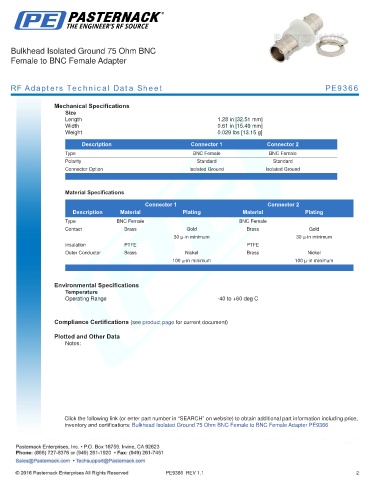

RF Adapters Technical Data Sheet PE9366

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.61 in [15.49 mm]
Weight 0.029 lbs [13.15 g]
.
Description Connector 1 Connector 2
Type BNC Female BNC Female
Polarity Standard Standard
Connector Option Isolated Ground Isolated Ground
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female BNC Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Isolated Ground 75 Ohm BNC Female to BNC Female Adapter PE9366
