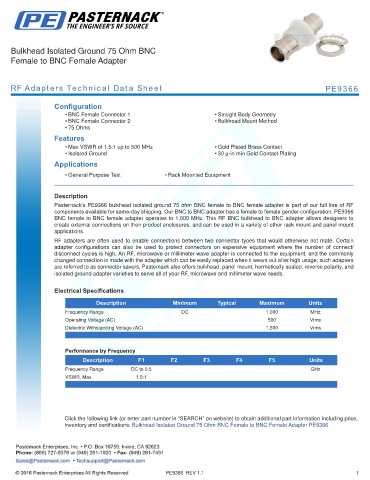

Bulkhead Isolated Ground 75 Ohm BNC
Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9366

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 75 Ohms
Features
• Max VSWR of 1.5:1 up to 500 MHz • Gold Plated Brass Contact
• Isolated Ground • 30 µ-in min Gold Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9366 bulkhead isolated ground 75 ohm BNC female to BNC female adapter is part of our full line of RF
components available for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9366
BNC female to BNC female adapter operates to 1,000 MHz. This RF BNC bulkhead to BNC adapter allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 0.5 GHz
VSWR, Max 1.5:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Isolated Ground 75 Ohm BNC Female to BNC Female Adapter PE9366

PE9366 REV 1.1 1
