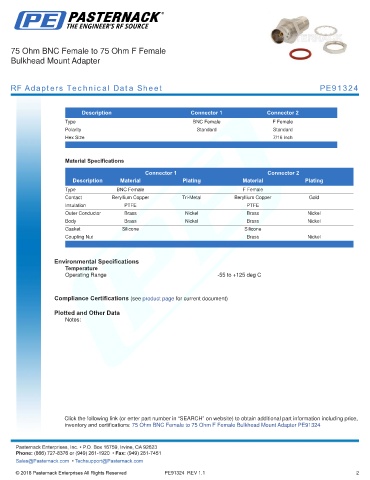

75 Ohm BNC Female to 75 Ohm F Female
Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE91324

.
Description Connector 1 Connector 2
Type BNC Female F Female
Polarity Standard Standard
Hex Size 7/16 inch
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female F Female
Contact Beryllium Copper Tri-Metal Beryllium Copper Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
Body Brass Nickel Brass Nickel
Gasket Silicone Silicone
Coupling Nut Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female to 75 Ohm F Female Bulkhead Mount Adapter PE91324
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91324 REV 1.1 2
