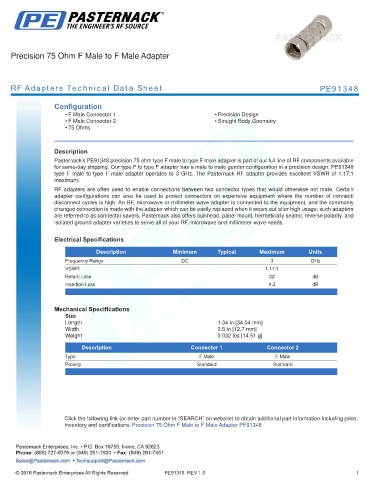

Precision 75 Ohm F Male to F Male Adapter

RF Adapters Technical Data Sheet PE91348

Configuration
• F Male Connector 1 • Precision Design
• F Male Connector 2 • Straight Body Geometry
• 75 Ohms
.
Description
Pasternack’s PE91348 precision 75 ohm type F male to type F male adapter is part of our full line of RF components available
for same-day shipping. Our type F to type F adapter has a male to male gender configuration in a precision design. PE91348
type F male to type F male adapter operates to 3 GHz. The Pasternack RF adapter provides excellent VSWR of 1.17:1
maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.17:1
Return Loss 22 dB
Insertion Loss 0.3 dB
. .

Mechanical Specifications
Size
Length 1.34 in [34.04 mm]
Width 0.5 in [12.7 mm]
Weight 0.032 lbs [14.51 g]
.
Description Connector 1 Connector 2
Type F Male F Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 75 Ohm F Male to F Male Adapter PE91348
