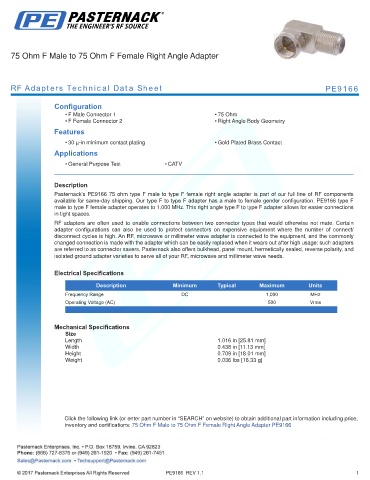

75 Ohm F Male to 75 Ohm F Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9166

Configuration
• F Male Connector 1 • 75 Ohm
• F Female Connector 2 • Right Angle Body Geometry
Features

• 30 µ-in minimum contact plating • Gold Plated Brass Contact
Applications
• General Purpose Test • CATV
.
Description
Pasternack’s PE9166 75 ohm type F male to type F female right angle adapter is part of our full line of RF components
available for same-day shipping. Our type F to type F adapter has a male to female gender configuration. PE9166 type F
male to type F female adapter operates to 1,000 MHz. This right angle type F to type F adapter allows for easier connections
in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.016 in [25.81 mm]
Width 0.438 in [11.13 mm]
Height 0.709 in [18.01 mm]
Weight 0.036 lbs [16.33 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Right Angle Adapter PE9166

PE9166 REV 1.1 1
