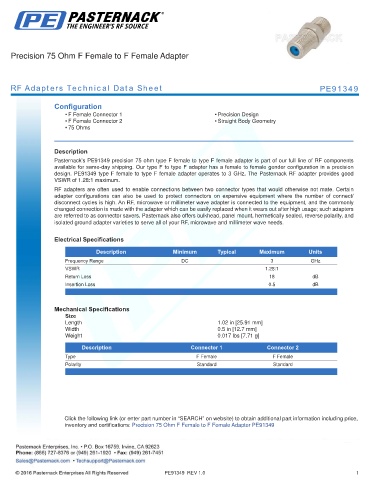

Precision 75 Ohm F Female to F Female Adapter

RF Adapters Technical Data Sheet PE91349

Configuration
• F Female Connector 1 • Precision Design
• F Female Connector 2 • Straight Body Geometry
• 75 Ohms
.
Description
Pasternack’s PE91349 precision 75 ohm type F female to type F female adapter is part of our full line of RF components
available for same-day shipping. Our type F to type F adapter has a female to female gender configuration in a precision
design. PE91349 type F female to type F female adapter operates to 3 GHz. The Pasternack RF adapter provides good
VSWR of 1.28:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.28:1
Return Loss 18 dB
Insertion Loss 0.5 dB
. .

Mechanical Specifications
Size
Length 1.02 in [25.91 mm]
Width 0.5 in [12.7 mm]
Weight 0.017 lbs [7.71 g]
.
Description Connector 1 Connector 2
Type F Female F Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision 75 Ohm F Female to F Female Adapter PE91349
