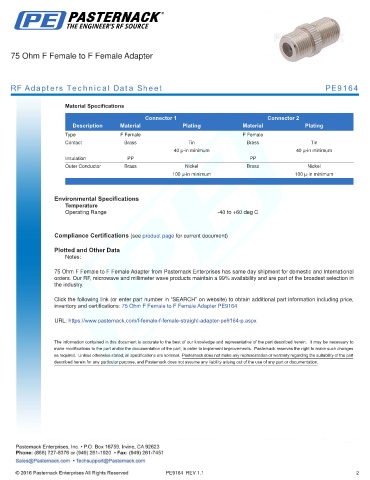

75 Ohm F Female to F Female Adapter

RF Adapters Technical Data Sheet PE9164

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Female F Female
Contact Brass Tin Brass Tin
40 µ-in minimum 40 µ-in minimum
Insulation PP PP
Outer Conductor Brass Nickel Brass Nickel
100 µ-in minimum 100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Female to F Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to F Female Adapter PE9164

URL: https://www.pasternack.com/f-female-f-female-straight-adapter-pe9164-p.aspx

PE9164 REV 1.1 2
