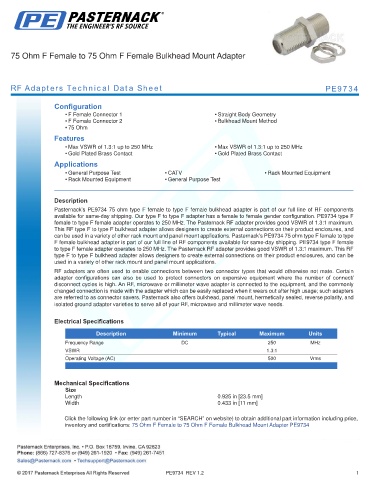

75 Ohm F Female to 75 Ohm F Female Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE9734

Configuration
• F Female Connector 1 • Straight Body Geometry
• F Female Connector 2 • Bulkhead Mount Method
• 75 Ohm
Features
• Max VSWR of 1.3:1 up to 250 MHz • Max VSWR of 1.3:1 up to 250 MHz
• Gold Plated Brass Contact • Gold Plated Brass Contact
Applications
• General Purpose Test • CATV • Rack Mounted Equipment
• Rack Mounted Equipment • General Purpose Test
.
Description
Pasternack’s PE9734 75 ohm type F female to type F female bulkhead adapter is part of our full line of RF components
available for same-day shipping. Our type F to type F adapter has a female to female gender configuration. PE9734 type F
female to type F female adapter operates to 250 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
This RF type F to type F bulkhead adapter allows designers to create external connections on their product enclosures, and
can be used in a variety of other rack mount and panel mount applications. Pasternack’s PE9734 75 ohm type F female to type
F female bulkhead adapter is part of our full line of RF components available for same-day shipping. PE9734 type F female
to type F female adapter operates to 250 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF
type F to type F bulkhead adapter allows designers to create external connections on their product enclosures, and can be
used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 250 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 0.925 in [23.5 mm]
Width 0.433 in [11 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to 75 Ohm F Female Bulkhead Mount Adapter PE9734
