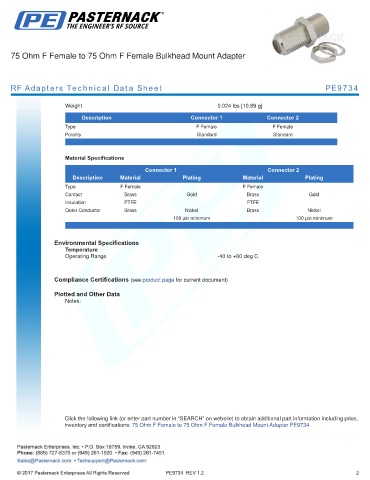

75 Ohm F Female to 75 Ohm F Female Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE9734

Weight 0.024 lbs [10.89 g]
.
Description Connector 1 Connector 2
Type F Female F Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type F Female F Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100 µin minimum 100 µin minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female to 75 Ohm F Female Bulkhead Mount Adapter PE9734

PE9734 REV 1.2 2
