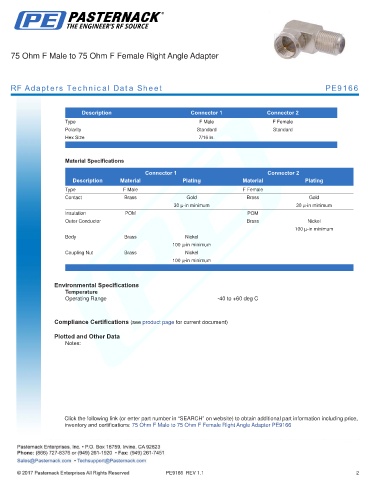

75 Ohm F Male to 75 Ohm F Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9166

.
Description Connector 1 Connector 2
Type F Male F Female
Polarity Standard Standard
Hex Size 7/16 in.
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type F Male F Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation POM POM
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male to 75 Ohm F Female Right Angle Adapter PE9166
