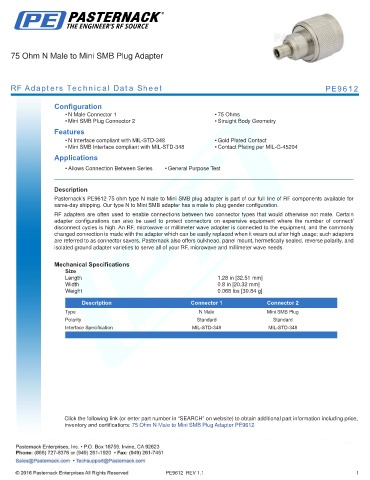

75 Ohm N Male to Mini SMB Plug Adapter

RF Adapters Technical Data Sheet PE9612

Configuration
• N Male Connector 1 • 75 Ohms
• Mini SMB Plug Connector 2 • Straight Body Geometry
Features
• N Interface compliant with MIL-STD-348 • Gold Plated Contact
• Mini SMB Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9612 75 ohm type N male to Mini SMB plug adapter is part of our full line of RF components available for
same-day shipping. Our type N to Mini SMB adapter has a male to plug gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.8 in [20.32 mm]
Weight 0.068 lbs [30.84 g]
.
Description Connector 1 Connector 2
Type N Male Mini SMB Plug
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male to Mini SMB Plug Adapter PE9612

PE9612 REV 1.1 1
