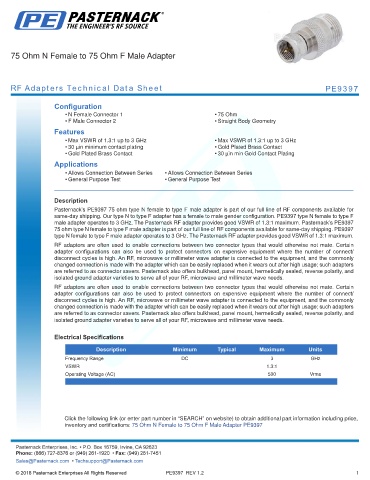

75 Ohm N Female to 75 Ohm F Male Adapter

RF Adapters Technical Data Sheet PE9397

Configuration
• N Female Connector 1 • 75 Ohm
• F Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 3 GHz • Max VSWR of 1.3:1 up to 3 GHz
• 30 µin minimum contact plating • Gold Plated Brass Contact
• Gold Plated Brass Contact • 30 µin min Gold Contact Plating
Applications
• Allows Connection Between Series • Allows Connection Between Series
• General Purpose Test • General Purpose Test
.
Description
Pasternack’s PE9397 75 ohm type N female to type F male adapter is part of our full line of RF components available for
same-day shipping. Our type N to type F adapter has a female to male gender configuration. PE9397 type N female to type F
male adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. Pasternack’s PE9397
75 ohm type N female to type F male adapter is part of our full line of RF components available for same-day shipping. PE9397
type N female to type F male adapter operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female to 75 Ohm F Male Adapter PE9397
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
